RoT 칩을 이용한 보안 모듈
Security Modules
Wi-Fi Module


  • Secure IoT Module with WiFi / BLE
  • 2.4GHz / UART, I2C, PWM, ADC, GPIO
  • 27mm * 20mm * 24mm / 20 pin
  • AWS IoT Core Certified in mid-February

Wi Fi Specification


  • IEEE 802.11 b/g/n (2.4GHz, 1x1)
  • Supports 20MHz, 40MHz channels
  • Wi Fi security WEP , WPA2 and WPS
  • Integrated 2.4GHz PA/LNA and RF switch

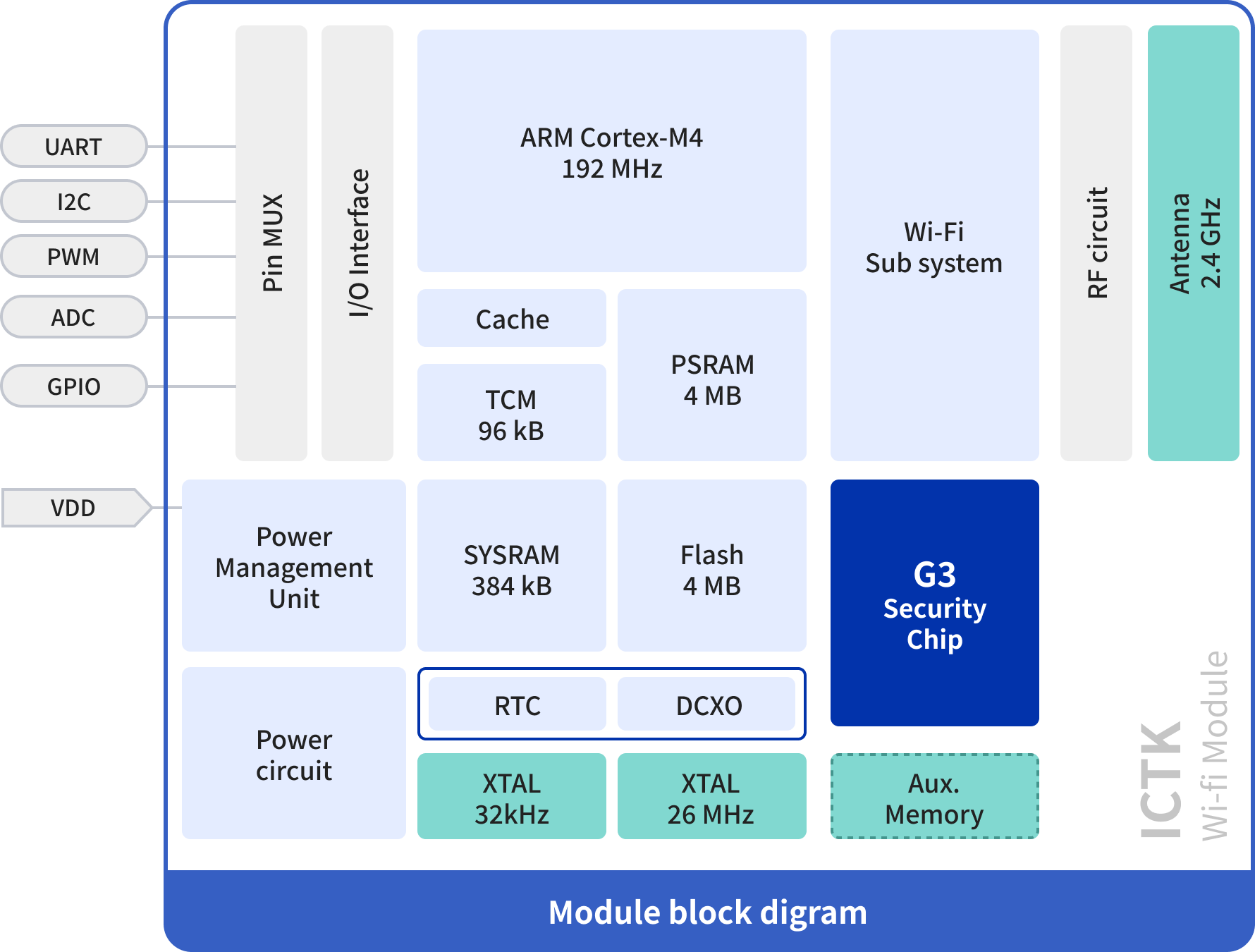

Main Chipset


  • 192MHz ARM Cortex M4 with FPU
  • Up to 384KB SRAM, with zero wait state,
    max frequency 96MHz
  • Up to 32KB L1 cache, with high hit rate,
     zero wait state, maximum frequency at 192MHz
  • Embedded 32Mbits flash, with less than 0.1uA
    (typical) and 8 0MHz maximum frequency
    Deep power down current
  • Embedded 32Mbits pseudo SRAM with half sleep mode current
  • Embedded 32Mbits pseudo SRAM with half sleep
    mode current: 10uA (PASR 1/8 at 25 1x Refresh)
    and 96MHz maximum frequency

 Module Specification


  • Integrated 2.4GHz Antenna
  • Interfaces: UART, I2C, PWM, ADC, GP IO
  • 26MHz crystal oscillator / 32KHz crystal
    oscillator for RTC
  • Operating temperature range : 30 ~ 85
  • Wi Fi security WEP , WPA2 and WPS
  • Integrated PUF based security chip for
    secure authentication
  • IoT(사물 인터넷)
  • 보안/액세스 제어
  • 가전 제품
  • 스마트 에너지
  • 센서 네트워크
▪
Secure IoT Module with WiFi / BLE
▪
2.4GHz / UART, I2C, PWM, ADC, GPIO
▪
27mm * 20mm * 24mm / 20 pin
▪
AWS IoT Core Certified in mid-February
